We maintain global alliances with original silicon suppliers that allows us to offer a sufficient and diverse inventory for our clients.



SILICON WAFERS



We deliver prime grade products direct from the original silicon manufacturers

We source SEMI standard wafers that are ready to sell

Wafers are purchased direct from the top silicon manufacturers in the world

Lots are certified by the manufacturers

Cassette and packaging integrity is maintained

Made-to-order part numbers direct from manufacturers based on preset customer specifications

We purchase surplus stock and have allocated capacity agreements

Volume purchasing helps reduce overall costs

These off the shelf products are available on demand




What is a Silicon Wafer?

A wafer is a thin piece of semiconductor material, normally silicon crystal. These wafers are used to fabricate integrated circuits (ICs) and other micro devices. Silicon wafers are available in a variety of sizes ranging from 25.4 mm (1 inch) to 300 mm (11.8 inches).



We source from the top brands in the industry

TEST GRADE WAFERS



Available sizes

1” | 25.4 mm
2” | 50.8 mm
3” | 76.2 mm
4” | 100 mm
5” | 125 mm
6” | 150 mm
8” | 200 mm
12”| 300 mm


We manufacture wafers to a SEMI standard or customized finished

Reduced cost

Sortable to customer specs

Customizable documentation & labeling

Flexible order quantities

All wafer sizes available

Wafer processing done in the USA



CZ Method





Prof. Jan Czochralski
The “Father” of Crystal Growth method


The CZ method was discovered in 1916 during crystallization of Tin, Zn and Sb. Prof. Czochralski obtained single crystal metal needles with diameter of ~ up 1 mm in diameter and 150 mm length. This method was forgotten until the end of the Second World War.

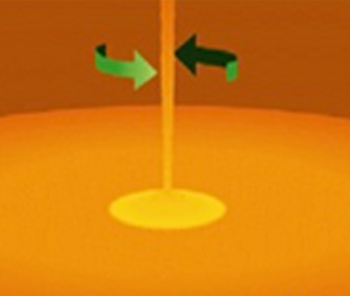

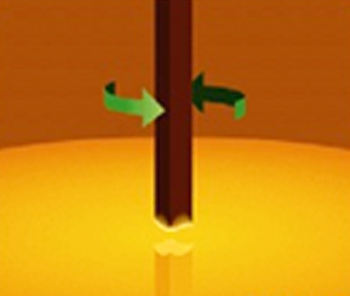

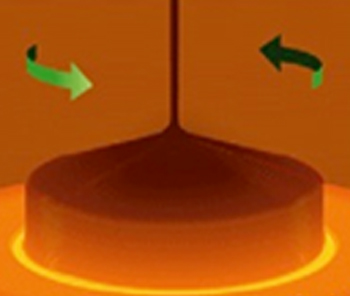

The Czochralski process is a technique used in making single-crystal silicon A solid seed of crystal is rotated and slowly extracted from a pool of molten Si It requires careful control to give crystals a desired purity and dimensions.
